Fire Stop Doors
30-Minute Composite Fire Doors
Market-leading fire safety and security, paired with unrivalled versatility and style.
Get a Free Quote
Why Choose Fire Stop Doors?
- Independently tested by Warrington Fire as part of BM Trada 170 certification
- Achieved up to 58 minutes fire integrity with no failings recorded (test terminated at 58 minutes)
- Passed more than 50 fire tests when tested to BS EN 1634-1
- MHCLG compliant
- Q-Mark certified for Fire, Smoke and Security
- Tested to full PAS24 Enhanced Security Standard

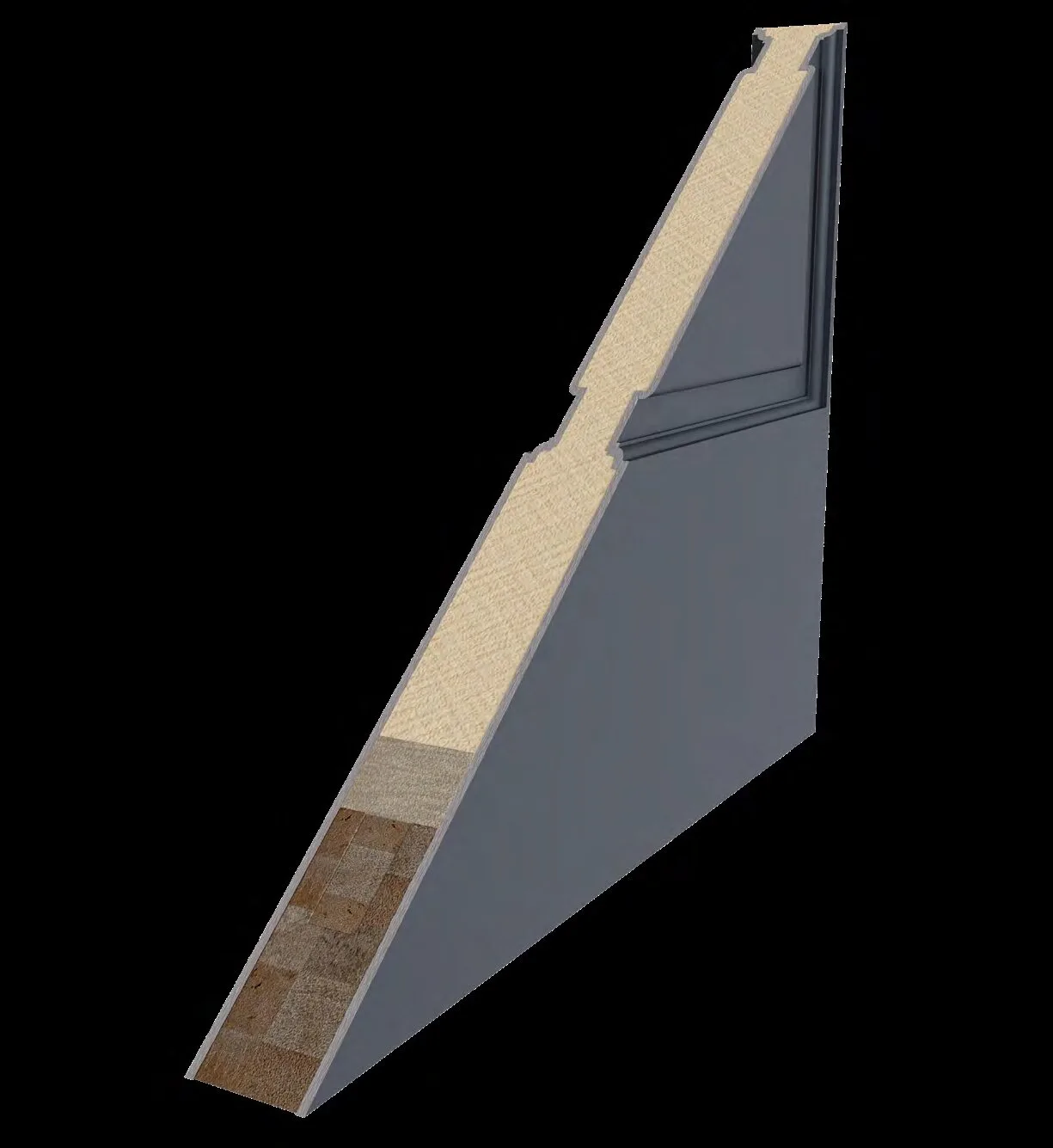

The Internal Core
Engineered Hardwood Subframe
Provides stability and rigidity, creates space for trimming to size without removing foam
LVL (Laminated Veneered Lumber)
Additional stability for larger sized doors
Fire Resistant Phenolic Foam
Fire-retardant, insulating foam providing both fire protection and general insulation
GRP Skins
Aesthetic woodgrain finish matching other composite door ranges

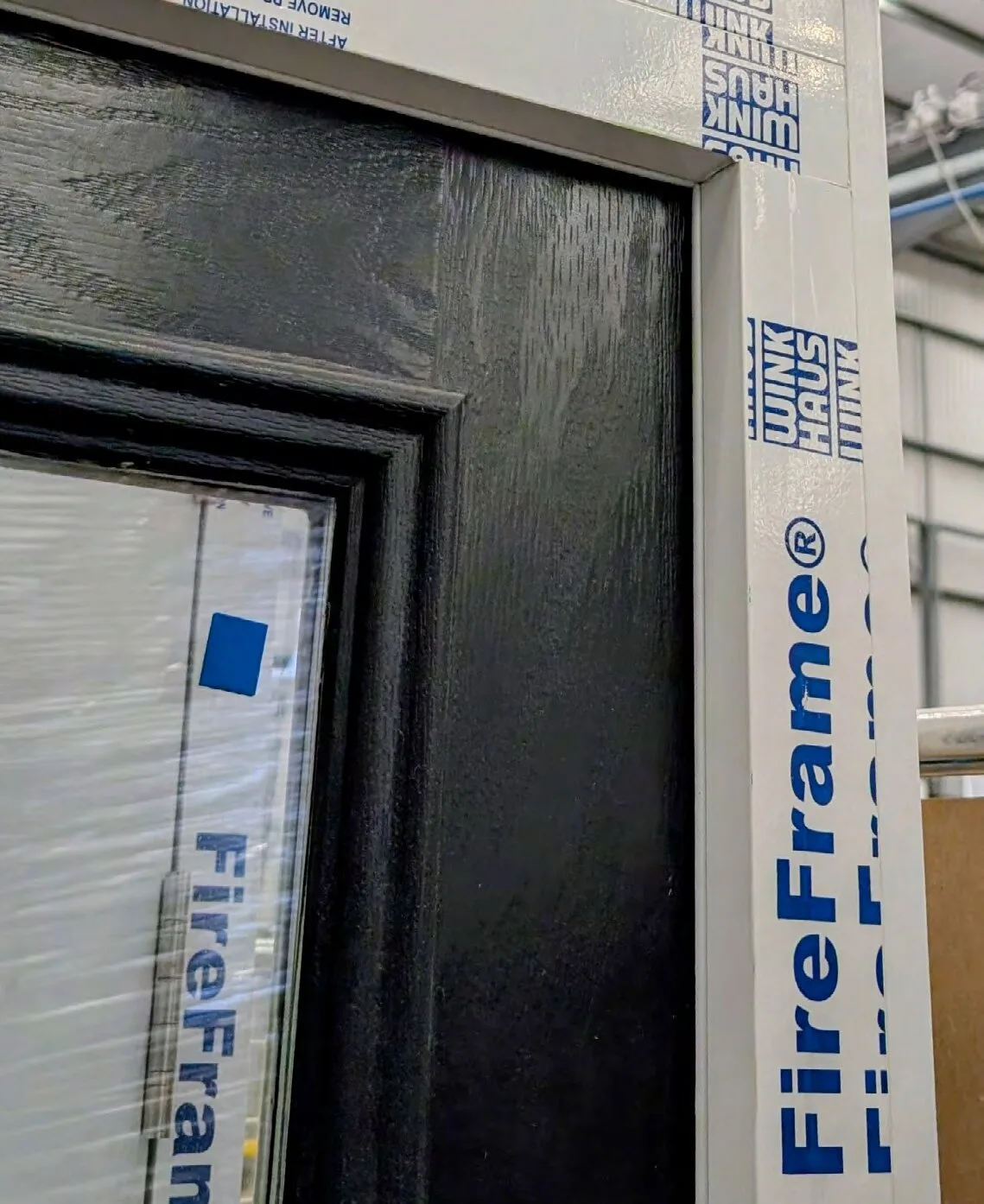

Winkhaus Locking System
The Winkhaus FireFrame system uses GRP (glass-reinforced polymer) with fire-resistant additives, featuring the AV2 & AV2-E locking system.
AutoLock AV2
Engages automatically in 3 positions, holding door against intumescent seals for 30-minute fire and smoke rating
Solid Anti-Push Back Hooks
Two solid hooks throw automatically on closing, preventing lock push-back
Heavy Duty Steel Keeps
High grade steel, Grade 5 corrosion resistance (BS EN1670)
Precision Latch and Deadbolt
Alloy sprung latch and nickel plated steel deadbolt, with optional independent central deadbolt
High Performance Gearbox
Tested to 100,000 cycles, lowest operating forces, prevents handle droop
Door Range

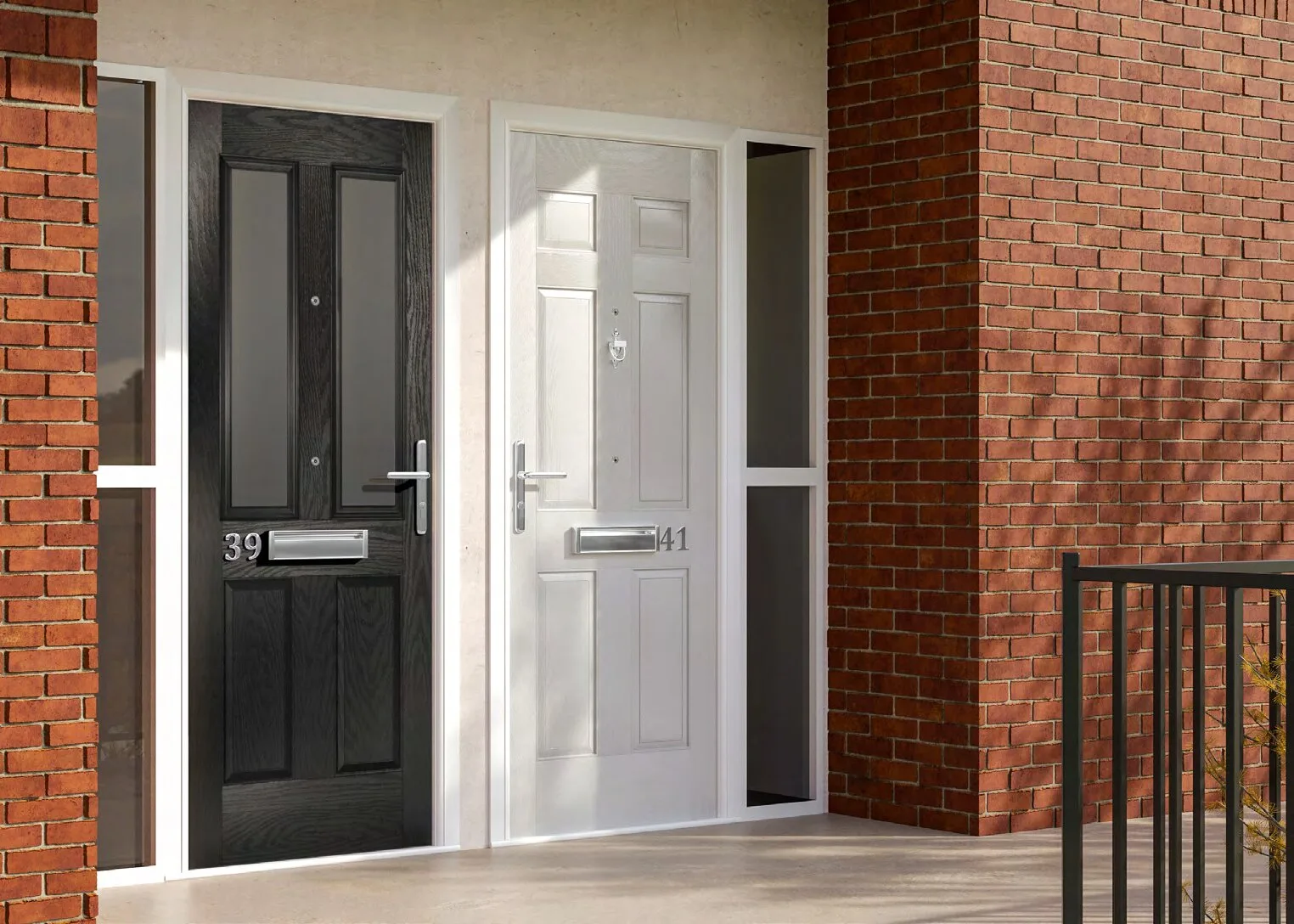

6 Panel Combi
Traditional. Reliable. Safe.
Most popular blank style, highly defined mouldings with distinctive woodgrain texture.
Prepped Designs:
Door leaf height: Min 1913mm / Max 2013mm
Min door leaf width: Glazed 758mm / Solid 722mm
Max door leaf width: 914mm (glazed or solid)
Glass: Fire rated from approved supplier — Clear or Satin
Available Colours
White
Anthracite Grey
Black
Blue
Green
RedConfiguration Options

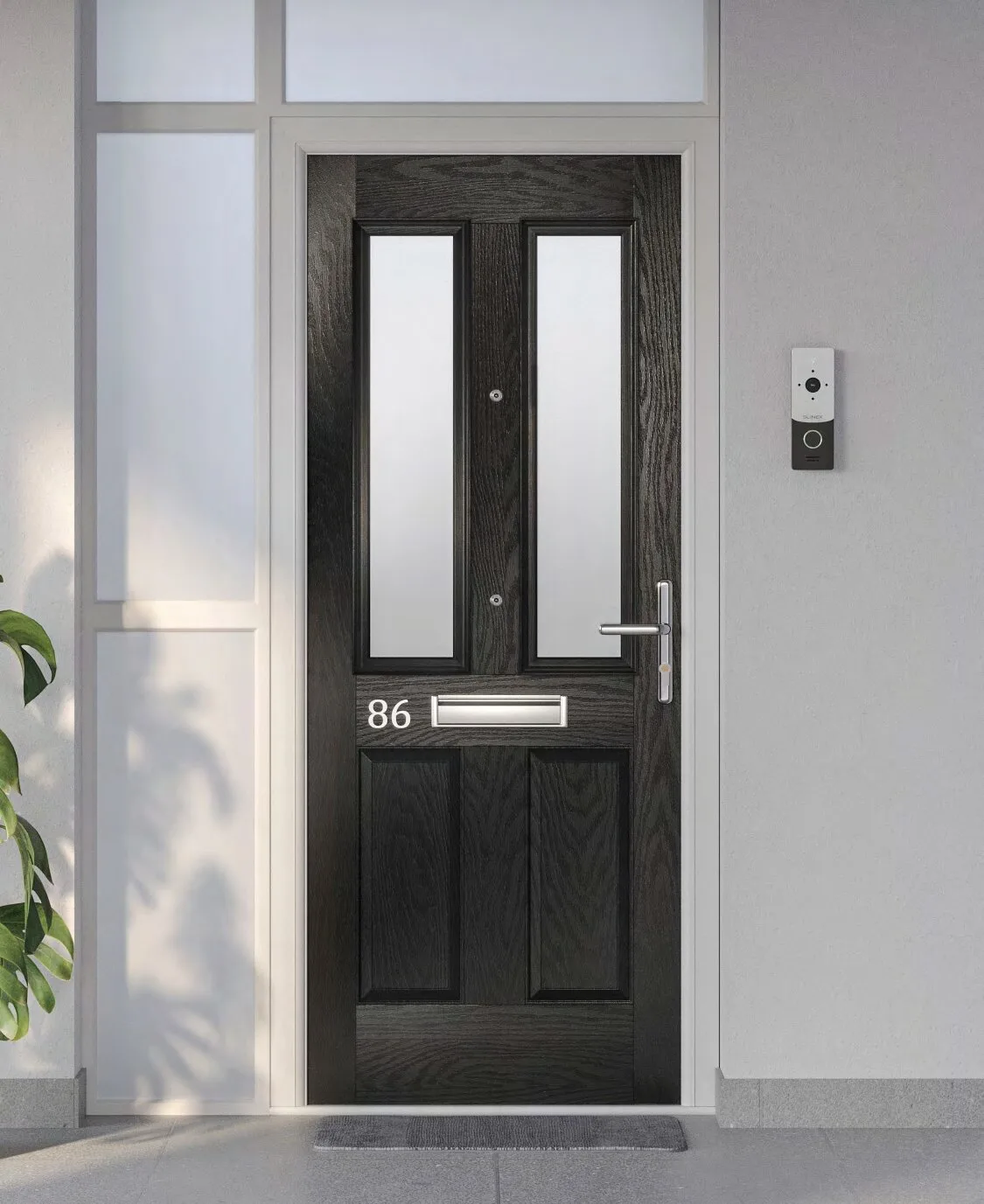

The Fire Stop range supports sidelights, toplights, and combined sidelight + toplight frames to create full screens. These require couplers and are not manufactured as one piece.
Door Furniture
Chrome hardware range available for both external and internal doors
